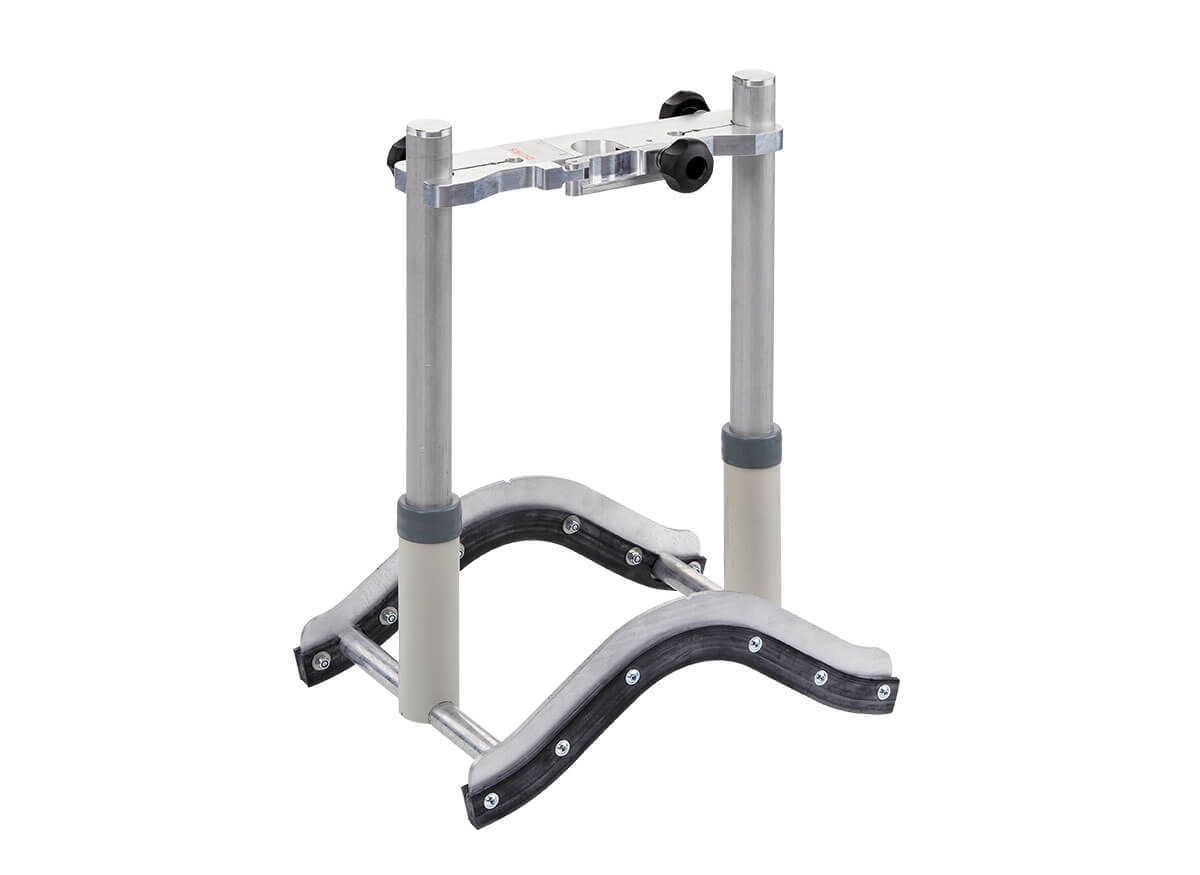

BST 1 drill stand

Applications & Features

Applications

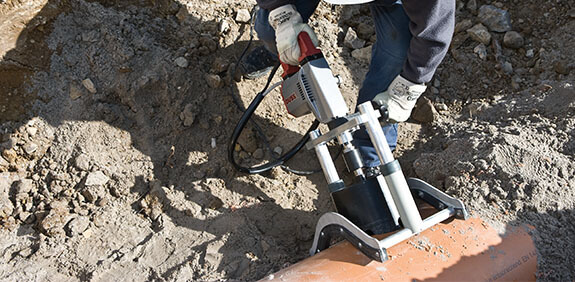

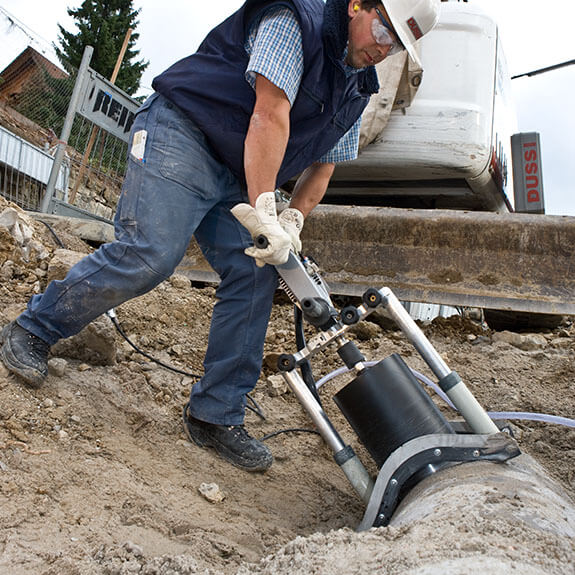

  • Right-angled and centric drillings in smooth sewer pipes made of concrete and plastic materials

Features

  • Convenient, adaptable drilling in confined areas
  • No additional mounting required, short set-up times
  • No pilot drill bit or centring rod required
  • No tilting
  • Forces and torques largely compensated for by the stand
  • Vertically adjustable drill holder for core bits of different length
  • Optimum support of the drill stand on the sewer time
  • Drilling can be carried out even on a level surface
  • Precision drilling through the centre axis of the pipe ensures that connecting pipes are completely leakproof

Action

Technical data

BST 1 drill stand
Max. drilling dia. 257 mm
Stroke 170 mm
Weight 5.8 kg
Recommended drills DIA 200, DIA 300, DIA 303, DIA 52 W, DIA 100 W, DIA 150 W, DIA 300 W, DIA 203 W, DIA 303 W
Clamping dia. 43 mm
Min. outer dia. of sewer pipe 200 mm
Max. core bit length 300 mm
