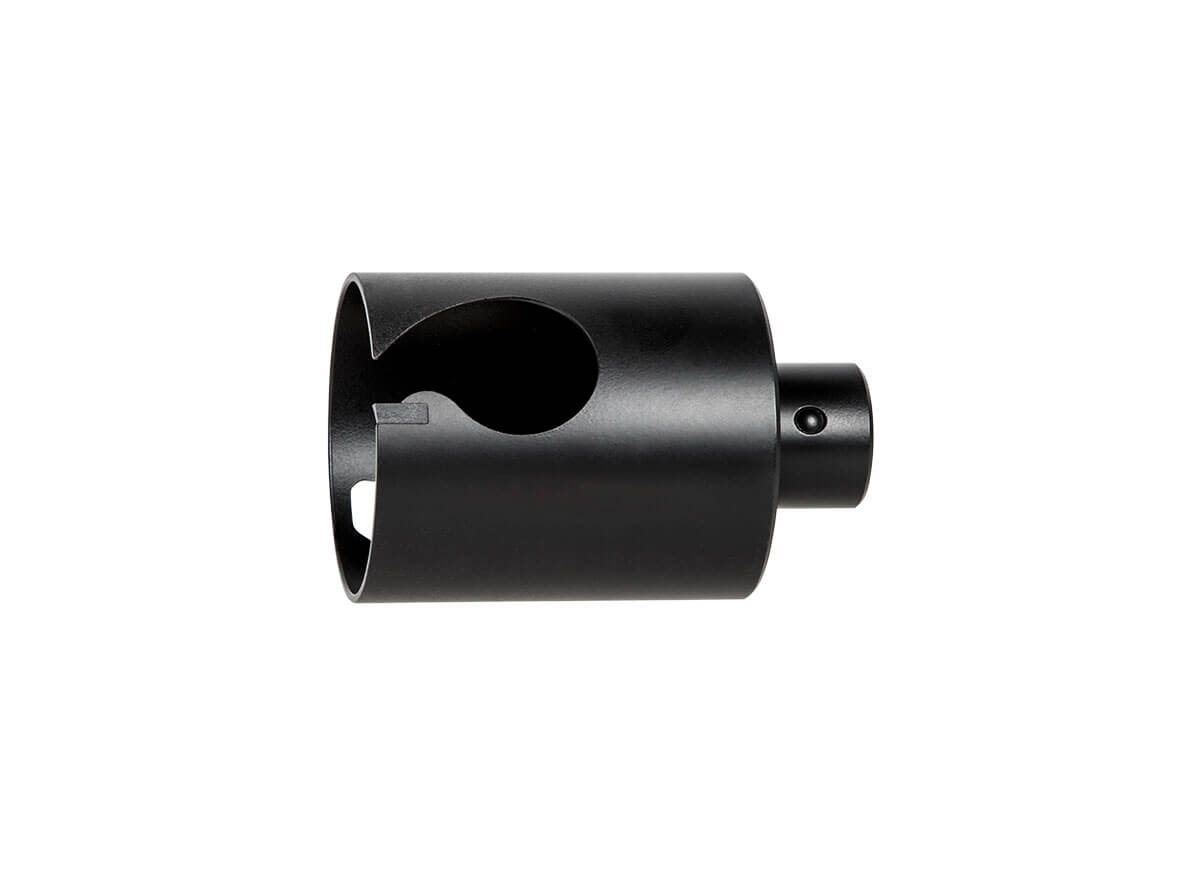

LC hole saw

Applications & Features

Applications

  • Installation holes and continuous drilling of the highest precision
  • PVC, PE, PP, GFRP, acrylic glass, polycarbonate
  • Massive wood, OSB, particle boards, veneered chip- boards, plywood, wire mesh plywood, laminate, MDF, HDF
  • Artificial resin, e.g. Pertinax, Trespa, Resopal

Features

  • Extremely short drilling times and enormous time savings, thanks to innovative cutting technology and premium-quality carbide inserts
  • Smooth, quiet running, exact concentricity and high drilling stability
  • Easy hole saw change and quick drill core removal thanks to quick change system
  • Excellent surface finish quality of the drill hole, making deburring unnecessary
  • Optimal chip removal thanks to extra large chip space
  • Minimal heat development
  • Exceptionally long service life of the premium-quality carbide inserts
  • Reasonable insert protrusion, greater safety, no catching
  • Reliable centring and hole saw guidance thanks to robust pilot drill

Action

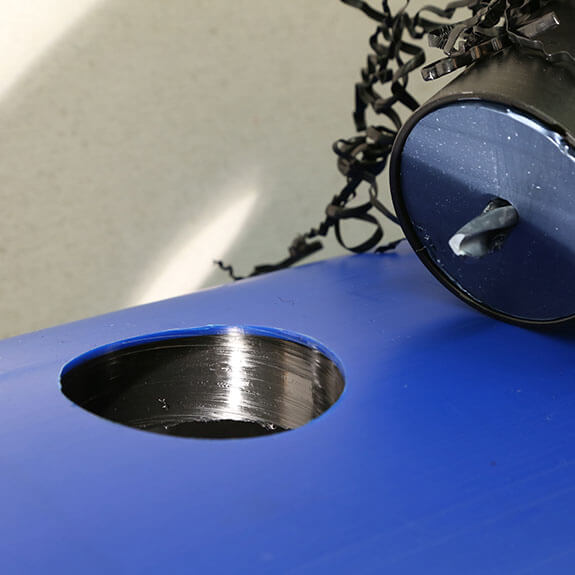

Excellent surface finish quality
Smooth, quite runnning and exact concentricity

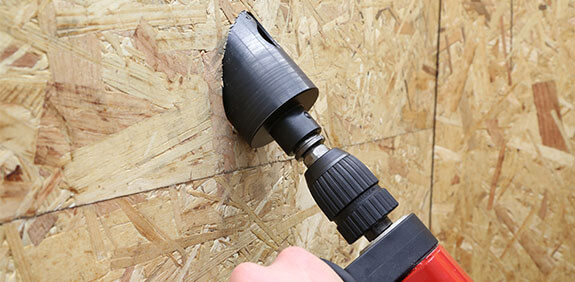

Angular drilling at extreme angles

Technical data

LC hole saw
Recommended speed for drilling dia. in wood composites up to 25 mm 2000 rpm
Recommended speed for drilling dia. in plastic materials up to 25 mm 2000 rpm
Recommended speed for drilling dia. in wood composites 26 - 35 mm 2000 rpm
Recommended speed for drilling dia. in plastic materials 26 - 35 mm 2000 rpm
Recommended speed for drilling dia. in wood composites 36 - 45 mm 2000 rpm
Recommended speed for drilling dia. in plastic materials 36 - 45 mm 2000 rpm
Recommended speed for drilling dia. in wood composites 46 - 60 mm 2000 rpm
Recommended speed for drilling dia. in plastic materials 46 - 60 mm 1600 rpm
Recommended speed for drilling dia. in wood composites 61 - 80 mm 2000 rpm
Recommended speed for drilling dia. in plastic materials 61 - 80 mm 1200 rpm
Recommended speed for drilling dia. in wood composites 81 - 110 mm 1500 rpm
Recommended speed for drilling dia. in plastic materials 81 - 110 mm 900 rpm
Connecting thread Quick change system
Drilling depth 70 mm

Order data

Drilling dia. mm
Order-No.
Drilling dia. mm
Order-No.
Drilling dia. mm
Order-No.
25
LC 25
32
LC 32
40
LC 40
50
LC 50
63
LC 63
68
LC 68
75
LC 75
83
LC 83
90
LC 90
126
LC 126

Order data

LC 25
Drilling dia. mm 25
LC 32
Drilling dia. mm 32
LC 40
Drilling dia. mm 40
LC 50
Drilling dia. mm 50
LC 63
Drilling dia. mm 63
LC 68
Drilling dia. mm 68
LC 75
Drilling dia. mm 75
LC 83
Drilling dia. mm 83
LC 90
Drilling dia. mm 90
LC 126
Drilling dia. mm 126
