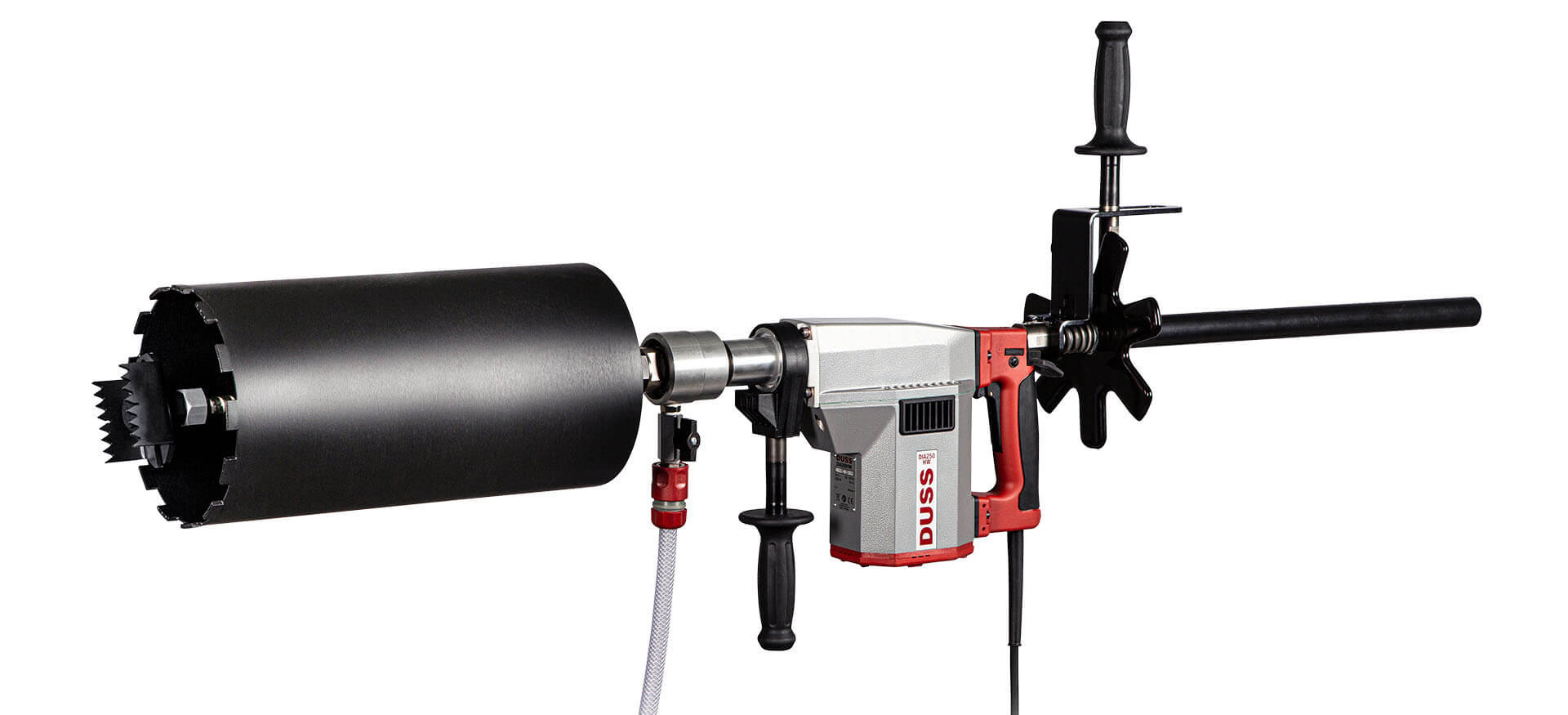

DIA 250 HW diamond core drill

Learn more

FEED WHEEL

The drill feed is generated by turning the handwheel. Improved drilling behaviour through reinforcements is possible thanks to the spring decoupling.


Feed Rod with fastening claw

The stable fastening claw ensures secure fastening of the feed rod to the sewer pipe. The hole is drilled to the center of the sewer pipe without additional alignment. The fastening claw is drilled over by the core bit. There is no damage to the pipe.


CONTINUOUS GUIDE Rod

This outstanding machine feature enables the unique advantages of the DIA 250 HW. The hollow guide rod makes it possible to guide the feed rod centrally through the machine, thus compactly combining the advantages of hand-held and stand guided drilling.


RELIABLE TORQUE ABSORPTION

The torque that occurs during drilling is compensated for by the corresponding surfaces of the torque sleeve and the feed rod screwed to the substrate.

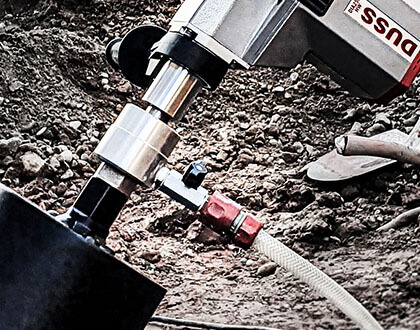

DECENTRALISED WATER SUPPLY

The water supply is off-centre to the guide rod so that the water only arrives where it is needed.

Applications & Features

Applications & Features

Applications

  • Drilling with CLF feed system
  • Connection drilling in sewer pipes, manholes and collectors
  • Drilling for house connections from the outside, also in insulated walls
  • Drilling in confined, hard-to-reach places, e.g. with existing pipe installations, structural conditions such as ceiling projection or window lintel
  • Drilling where the surroundings of the drilling site must not be damaged, e.g. by anchor holes
  • Civil engineering and sewer construction, municipal construction,
    road and landscape construction
  • Hand-held drillings or drillings with drill stand are also possible

Features

  • Mountable feed system CLF for uncomplicated, effortless drilling, combining the advantages of hand-held and stand-guided drilling
  • Continuous feed rod in the machine replaces the guiding function of a drill stand
  • Manual feed enables effortless drilling and absorption of the torque and the machine weight during drilling
  • Integrated drill core catcher, drill core remains reliably on the feed rod and can be easily removed
  • Centric alignment of the drill hole to the duct pipe axis
  • Compact, space-saving and lightweight drilling unit
  • Comfortable working even in narrow places, easy assembly and use, without need for larger tools or a second person
  • Handle arrangements and machine positions are variable for ergonomic work
  • Swivel water feed-through with decentralised water supply and overflow holes to prevent backflow
  • LED display for performance monitoring and service planning
  • Safety clutch with anti-lockup system
  • Screw-in auxiliary handle for non-fatiguing, back-saving
    posture when drilling downwards, hand-held
  • Electronic overload protection and soft start

Drilling with feed

  • Feed system CLF

    The unique DUSS CLF (Centre Line Force) feed system combines the advantages of hand-held drilling with the convenience of stand guided drilling.

  • Energy-saving work

    The lightweight drilling unit can be used universally and, thanks to the manual feed integrated into the machine, enables energy-saving work.

  • Feed rod in hollow guide rod

    The force is applied centrally in the drilling axis by the continuous feed rod in the guide rod.

  • Secure work

    The feed rod compensates the torque, ensures a securely guided, centred drill hole and holds the drill core.

Action

CLF mountable feed system for uncomplicated, effortless drilling, combining the advantages of hand-held and stand-guided drilling

Sewer pipe drilling with feed

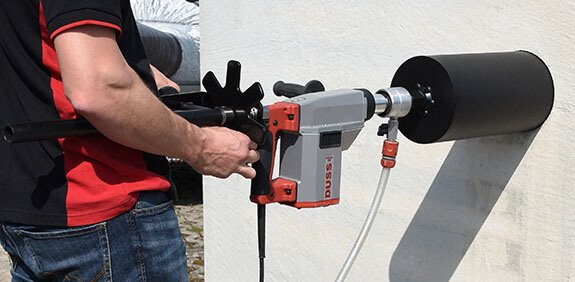

Drillings in wall with VOS 2

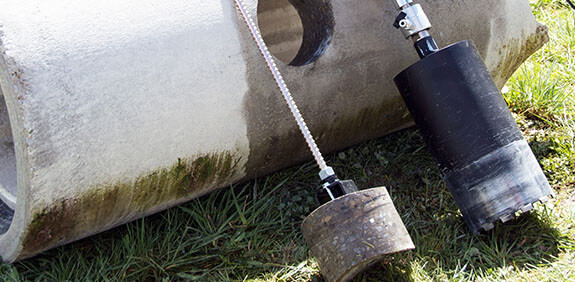

Integrated drill core catcher

Technical data

DIA 250 HW diamond core drill
Rated power 2000 W
Machine weight 7,4 kg / with feed system 11,4 kg
Chuck 1 1/4" UNC external
Rated speed 565 rpm
Drilling range with diamond core bit, hand-held, wet with feed dia. 102 - 257 mm / dia. 102 - 202 mm
Drilling range with diamond core bit, stand mounted, wet dia. 102 - 202 mm
Rated speed 565 rpm
Applications Civil engineering and sewer construction, municipal construction, connection drilling in sewer pipes, drilling for house connections
Surfaces reinforced concrete, masonry
Speed infinitely adjustable -
Pilot drilling -
Water-saving precision metering -
LED display for performance monitoring and service planning -

Video

Downloads

Flyer DIA 250 HW 2 MB

Tools · Accessories

1 1/4" CHL diamond core bits

for wet drilling, optimised for drilling with feed

Learn more
ZS centring disk

for drilling with CLF feed system required

Learn more
VOS 2 feed rod

zur Befestigung der DIA 250 HW, für Bohrung in Wand und Boden

Learn more
VOS 1 feed rod

zur Befestigung der DIA 250 HW, für Kanalbohrung ab Ø 122 mm

Learn more
BO 1090 Concrete screws

for fastening the VOS 1 feed rod

Learn more
ZSTH Centring rod

for hand held drillings with DIA 250 HW or DIA 200 HWS

Learn more
WDB 10 water supply unit

for use where no water supply is available

Learn more
