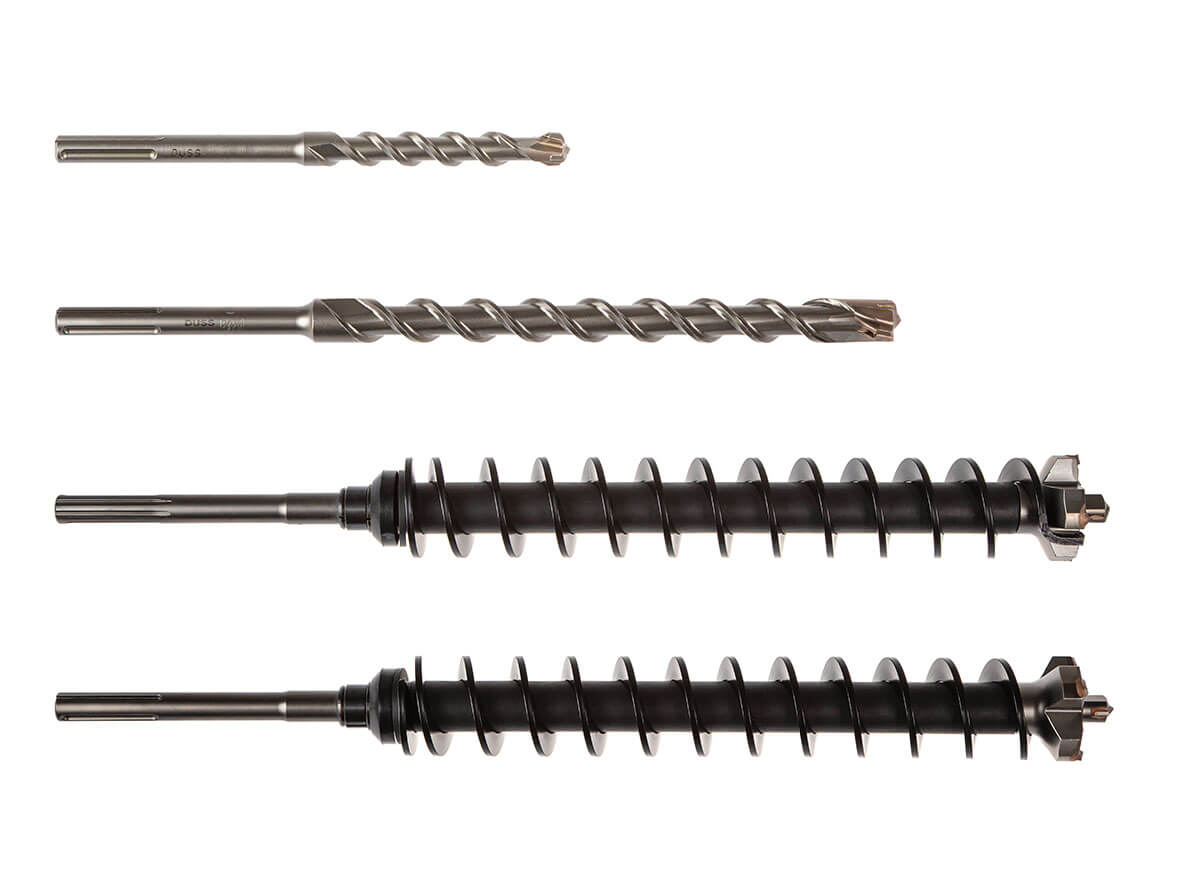

SDS-max HX hammer drill bits

Order data

Drilling dia, mm
Working length mm
Overall length mm
Order-No.
Drilling dia, mm
Working length mm
Overall length mm
Order-No.
Drilling dia, mm
Working length mm
Overall length mm
Order-No.
12
200
340
HX 122
12
400
540
HX 124
12
600
740
HX 125
14
200
340
HX 142
14
400
540
HX 144
15
200
340
HX 152
15
400
540
HX 154
16
200
340
HX 162
16
400
540
HX 164
18
200
340
HX 182
18
400
540
HX 184
20
200
320
HX 202
20
400
520
HX 204
20
800
920
HX 208
22
200
320
HX 222
22
400
520
HX 224
22
800
920
HX 228
24
200
320
HX 242
24
400
520
HX 244
25
200
320
HX 252
25
400
520
HX 254
25
800
920
HX 258
28
200
320
HX 282
28
400
520
HX 284
30
200
320
HX 302
30
400
520
HX 304
32
400
520
HX 324
32
800
920
HX 328
35
400
520
HX 354
40
400
520
HX 404
46
500
620
HX 465
46
900
1020
HX 469
55
500
620
HX 555
55
900
1020
HX 559
66*
500
620
HX 665
66*
900
1020
HX 669
80*
500
600
HX 805
80*
900
1020
HX 809
* only suitable for PX 76, PX 78 and PX 96

Order data

HX 122
Drilling dia, mm 12
Working length mm 200
Overall length mm 340
HX 124
Drilling dia, mm 12
Working length mm 400
Overall length mm 540
HX 125
Drilling dia, mm 12
Working length mm 600
Overall length mm 740
HX 142
Drilling dia, mm 14
Working length mm 200
Overall length mm 340
HX 144
Drilling dia, mm 14
Working length mm 400
Overall length mm 540
HX 152
Drilling dia, mm 15
Working length mm 200
Overall length mm 340
HX 154
Drilling dia, mm 15
Working length mm 400
Overall length mm 540
HX 162
Drilling dia, mm 16
Working length mm 200
Overall length mm 340
HX 164
Drilling dia, mm 16
Working length mm 400
Overall length mm 540
HX 182
Drilling dia, mm 18
Working length mm 200
Overall length mm 340
HX 184
Drilling dia, mm 18
Working length mm 400
Overall length mm 540
HX 202
Drilling dia, mm 20
Working length mm 200
Overall length mm 320
HX 204
Drilling dia, mm 20
Working length mm 400
Overall length mm 520
HX 208
Drilling dia, mm 20
Working length mm 800
Overall length mm 920
HX 222
Drilling dia, mm 22
Working length mm 200
Overall length mm 320
HX 224
Drilling dia, mm 22
Working length mm 400
Overall length mm 520
HX 228
Drilling dia, mm 22
Working length mm 800
Overall length mm 920
HX 242
Drilling dia, mm 24
Working length mm 200
Overall length mm 320
HX 244
Drilling dia, mm 24
Working length mm 400
Overall length mm 520
HX 252
Drilling dia, mm 25
Working length mm 200
Overall length mm 320
HX 254
Drilling dia, mm 25
Working length mm 400
Overall length mm 520
HX 258
Drilling dia, mm 25
Working length mm 800
Overall length mm 920
HX 282
Drilling dia, mm 28
Working length mm 200
Overall length mm 320
HX 284
Drilling dia, mm 28
Working length mm 400
Overall length mm 520
HX 302
Drilling dia, mm 30
Working length mm 200
Overall length mm 320
HX 304
Drilling dia, mm 30
Working length mm 400
Overall length mm 520
HX 324
Drilling dia, mm 32
Working length mm 400
Overall length mm 520
HX 328
Drilling dia, mm 32
Working length mm 800
Overall length mm 920
HX 354
Drilling dia, mm 35
Working length mm 400
Overall length mm 520
HX 404
Drilling dia, mm 40
Working length mm 400
Overall length mm 520
HX 465
Drilling dia, mm 46
Working length mm 500
Overall length mm 620
HX 469
Drilling dia, mm 46
Working length mm 900
Overall length mm 1020
HX 555
Drilling dia, mm 55
Working length mm 500
Overall length mm 620
HX 559
Drilling dia, mm 55
Working length mm 900
Overall length mm 1020
HX 665
Drilling dia, mm 66*
Working length mm 500
Overall length mm 620
HX 669
Drilling dia, mm 66*
Working length mm 900
Overall length mm 1020
HX 805
Drilling dia, mm 80*
Working length mm 500
Overall length mm 600
HX 809
Drilling dia, mm 80*
Working length mm 900
Overall length mm 1020
Drilling dia, mm * only suitable for PX 76, PX 78 and PX 96
Working length mm
Overall length mm
